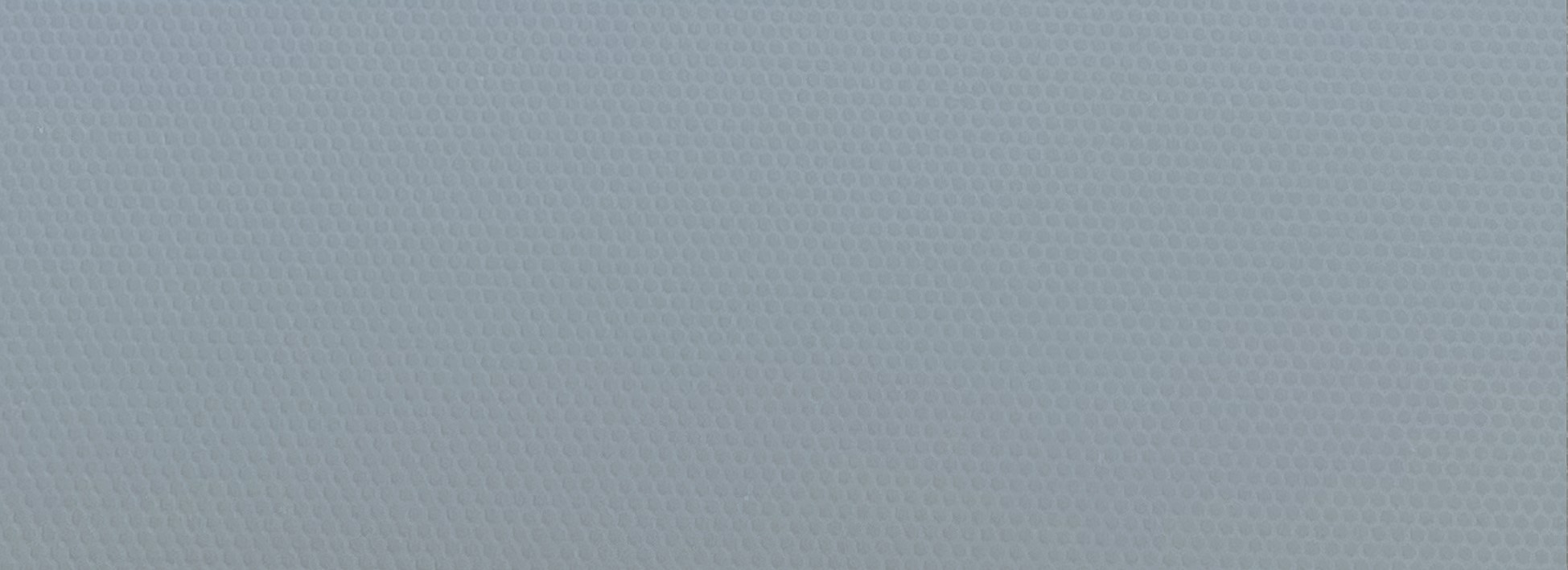

TESSUTO ORCA® 866 CARBON/HONEYCOMB

TESSUTO ORCA® 866 VARIANTE CARBON/HONEYCOMB

Cambio di aspetto per finiture esterne

TESSUTO ORCA® 866 VARIANTE CARBON/HONEYCOMB
pdf-icona
Base fabric :
Polyester High tenacity 1670 dtex – 1500 deniers
Coating :
Ext : Chlorosulfonated Polyethylene (CSM) /Polychloroprene (CR)

Int : Polychloroprene (CR)

Specifications
Standard-Test Direction
Result (Imperial)
Result (Metric)
Surfacic Mass ISO 2286-2
46,2 oz/yd² ± 4,87
1 565 g/m² ± 165
Tensile Strength ISO 1421
ASTM D 751 / B
CH (W)
TR (F)
≥562 lbs/in
≥517 lbs/in
≥500 daN/5cm
≥460 daN/5cm
Tear Resistance SO 4674-1
ASTM D 751 / B
 CH (W)
TR (F)

≥56,2 lbs

≥45,0 lbs

≥25 daN

≥20 daN
Permeability (Helium)
Zeppelin Test
 NFG 37 114 < 2,5 l/m²/24H
Peeling Test Adhesion
ISO 2411
ASTM D 751
≥16,85 lbs/in
≥15 daN/5cm
Low Temperature
Resistance
NF EN 1876-2
ASTM D 751
≤- 4 °F
≤- 20 °C
Heat Aging 7 day
at 158 °F (70°C)
 NF EN 12280 – 1   Tensile strength unchanged
Hydrocarbon Resistance ISO 1817   Tensile strength unchanged

Standard width:
 ≥57 in–≥ 145 cm
Standard colors:Please refer to the ORCA® catalogue
Carbon finishing:To be used only for elements of design above waterline
